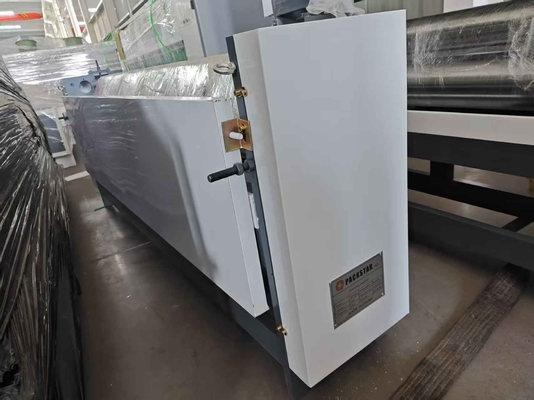

2000 Model Manual Gluing Machine Flute Laminating Machine For Corrugated Cardboard
| Description |
1. Function
Paper board glue pasting machine is used to make 3ply/5ply/7ply corrugated cardboard , working together with pressing machine ,widely used in semi auto corrugated carton box production line.
2. Brief introduction and specification
The sheet pasting gluing machine is a kind of gum mounting used to produce every kind of corrugated paperboard ,this machine can mount the gum on the single and double sides of the corrugated paper with plank paper into the corrugated paperboard ,the gum mounting role rot the machine has chosen the superior quality seamless steel pipe as its material and has the characteristics such as wear –resisting ,long using life and so on.
Adjust range of the upper glue roller distance: 0-2mm.
Adjust range of the lower glue roller distance: 0-3mm.
Adjust range of working roller distance: 2-10mm.
| Parameters |
| Model | 2000 |
| Feeding paper width | 2000 mm |
| Feeding paper thickness | 18 mm |
| Dimension(L*W*H) | 2.5*0.4*1 m |
| Work speed | 0-60 m/min |
| Weight | 300 kg |
| Power | 1.1 kw |
| Packing and Shipping |
1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.
2. Transportation and various types of weather conditions. A full set of maintenance and operation.
3. Manuals is included.
